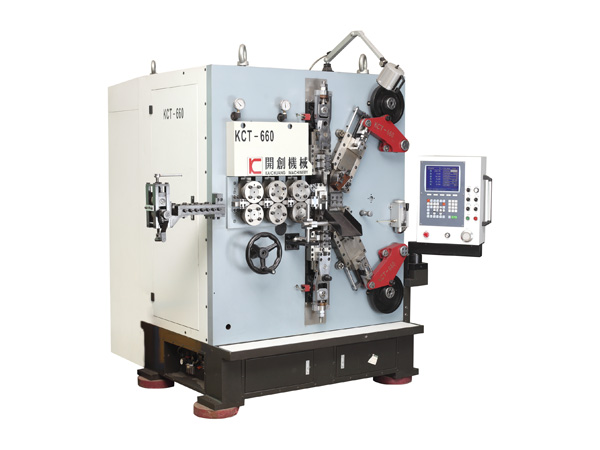

KCT-660 6 Axis CNC High-speed spring coiling machine

Description

  KCT-660 six axis CNC High-speed spring coiling machine, is my company in recent years to successfully market a new 6 axis computer spring machine, processing line diameter φ2.5-6.0mm, mainly suitable for processing all kinds of precision compression spring and simple torsion spring and wire forming products etc. if the pressure, spring, spring, spring tip tower.

Parameters

     機 型     Model     KCT-660
     軸 數     Axis Count     6 軸
     加工線徑     Wire Size Range     φ2.5-6.0mm
     最大彈簧外徑     Max Outside Diameter     φ110mm
     最大彈簧螺距     Max Pitch Of Spring     80mm
     最大送線速度     Max Feeding Speed     60m/min
     旋繞比     Spring Index     3
     送線輪組數     Wire Feeding Wheel Count        3 pairs(組)
     送線伺服電機     Feeding Servo Motor     15.0kw
     上切刀伺服電機          Upper Cutter Servo Motor     5.5kw
     下切刀伺服電機     Under Cutter Servo Motor     5.5kw
     凸輪伺服電機     Cam Servo Motor     2.9kw*2
     螺距伺服電機     Pitch Servo Motor     1.8kw
     機器尺寸     Dimension(LxWxH)     1700x2200x2200mm
     機器重量     Weight     4800kg
     電 源     Power     3-380VAC 50HZ



 Our company's KCT-660 six axis CNC High-speed spring coiling machine is composed of 6 Japan Yaskawa servo motor and etwo computer control system, each axis can operate independently or simultaneously into synchronous operation; spring forming technology to create a company of years of sedimentation, enhance the man-machine conversation ability, with a minute spring forming processing, with fast forming speed, precision, low noise and save time and material cost of debugging, can realize the function of cutting, cutting straight cut and swing cutting from different angles, with HD video length measurement function.
